Pressure Transmitter (Compact Type)

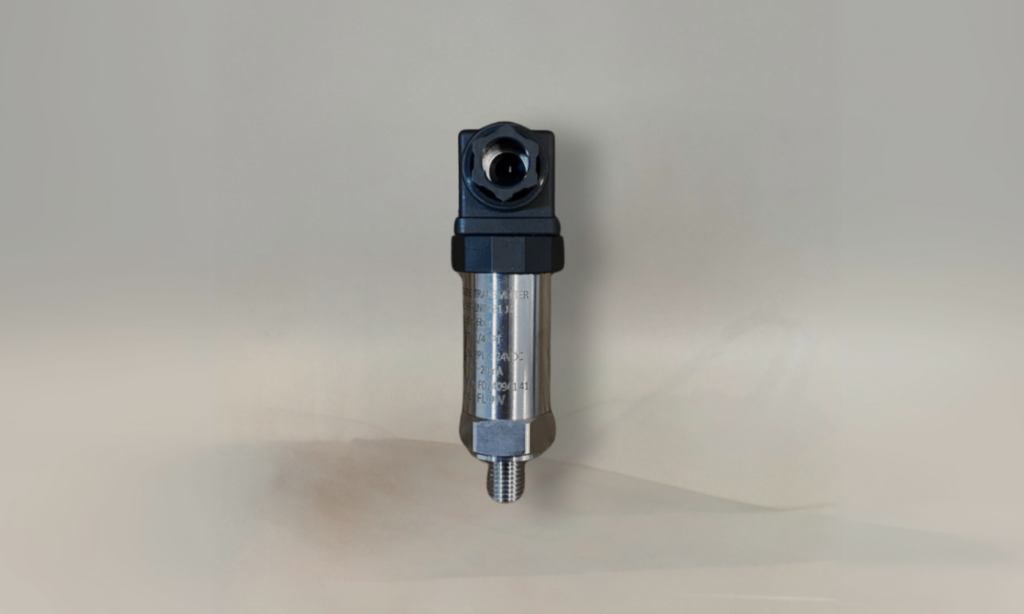

SP Compact Pressure Transmitter
SP pressure transmitter and SH level transmitter can be used to continuously measure the pressure ‘liquid level’ of the
process fluid (liquid, gas, steam) and convert it into 4-20mA standard signal and unit instrument or DCS system PLC.
Combination, constitutes an automatic control system. Widely used in petroleum, chemical, metallurgy, electric power,
food, beer, textile, pharmaceutical and other industries for process control and measurement.
Reference accuracy O .2%FS. O.5%FS
Measuring medium: Liquid, gas, or steam
Output signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, others
Power Supply: 24VDC
Temperature effect (-15-80’C)
Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M) as required
Electrical Connections: 1/2”NPT or M20*1.5
Range: 0-1000 bar
Powered: 24 VDC
Output: 4-20 mA RS485 Modbus
Connect: Tri Clamp, Thread, Flange Small, Light, Easy Installation

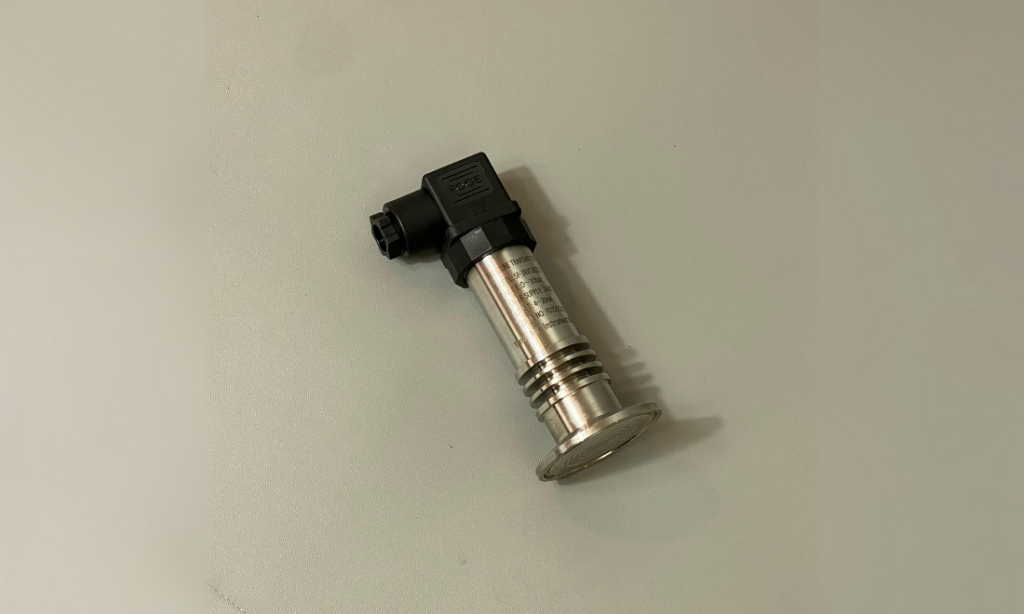

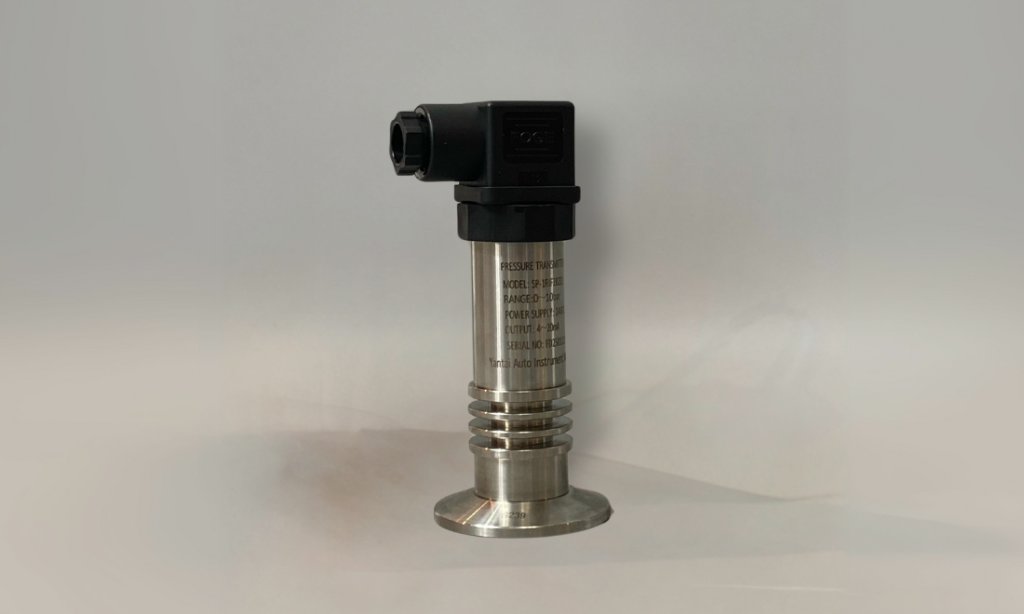

Sanitary Pressure Transmitter
Applications:
- Food and Beverage Industry
- Electric Power
- Process control System
- Chemical Industrial
- Pharmaceutical Industry
- Oil and Gas Industry
- Environmental Monitoring
