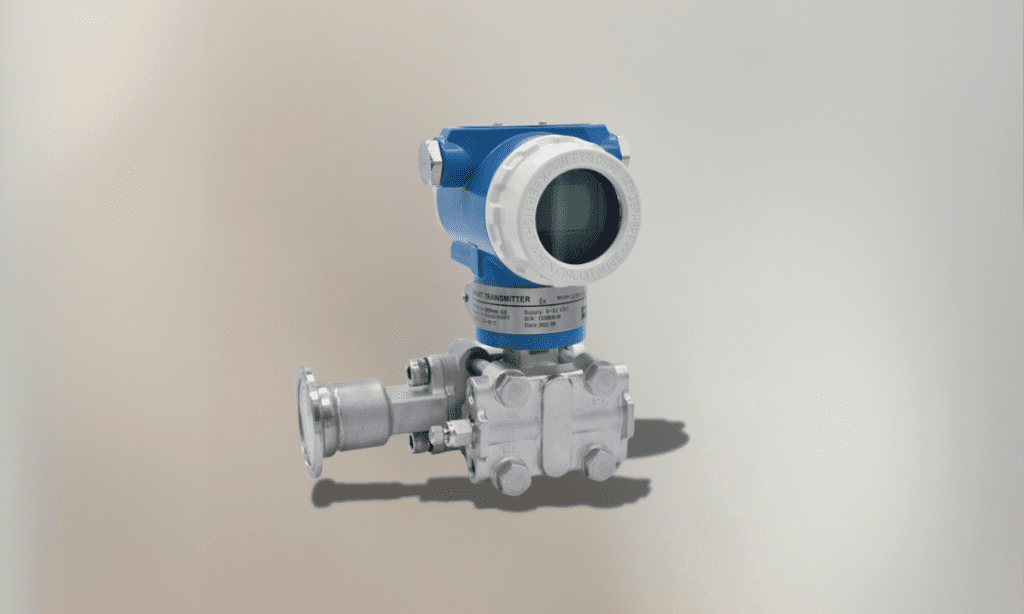

Smart Flange Pressure Level Transmitter
AT3051 LT Single Flange Level Transmitter
Flange level transmitter is used to measure level and density of liquids with solid and sediment,then convert into 4-20 mA
current signal output.available to connect with Hart Protocol for data monitor and control.diaphragm pressure transmitter
widely used in petroleum,chemical,metallurgy,electric power,food,paper, pharmaceutical, machinery,manufacturing and other
industries.
Measuring range: 10KPa-2MPa
Working Temperature: -25 to +95C
Current Output: 4 – 20 mA 2 wires Hart Protocol
Power Supply: 24VDC
Ambient Temperature: -25 to +120C
Process connection: DN50PN16, DN80PN16, as required
Electrical Connections: 1/2”NPT or M20*1.5
Enclosure:IP65
Intrinsically Safe: ia II C T6
Explosion proof: d II B T5
Diaphragm material: SUS316L, Hastelloy C,Tantalum
Range: 2000mm
Temperature: 5-70 degree
Powered: 24 VDC
4-20 mA Output HART
Diaphragm: 316L
Sanitary Connections: 1.5 inch
Diaphragm Diameter: 50.5mm
Material: SS304
With Tri-Clamp and Gasket
- Process control system
- Petroleum industry
- Chemical industry
- Food industry
