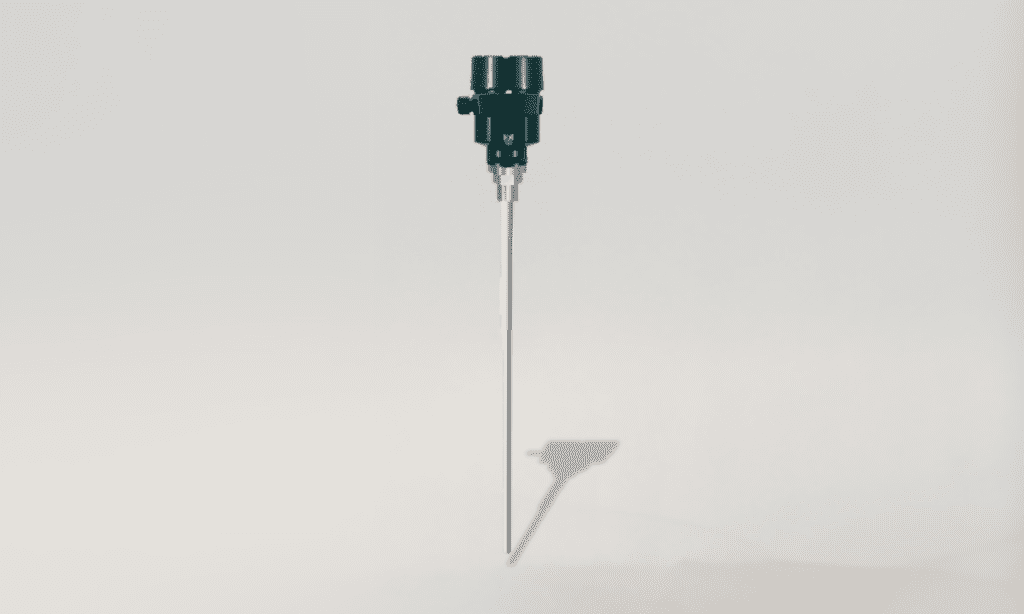

Capacitive Level Switch
Solid powder particles level point measurement
Application: Solid Point Measurement
Measurement Range: 500mm
Rod: SS316L
Process Temperature: -60 ℃ ~ 200 ℃
Prcoess Connection: 3/4 “NPT Thread, SS316L
Contact Rating: 24V DC
Protection Class: Aluminum IP68
Output Signal: Two sets of normally open and normally closed contacts relay
Explosion Type: EXD IIC T6 Gb
Cable Entry: M20*1.5
Display Time: 0~99s (Adjustable)
Aluminum Housing IP68

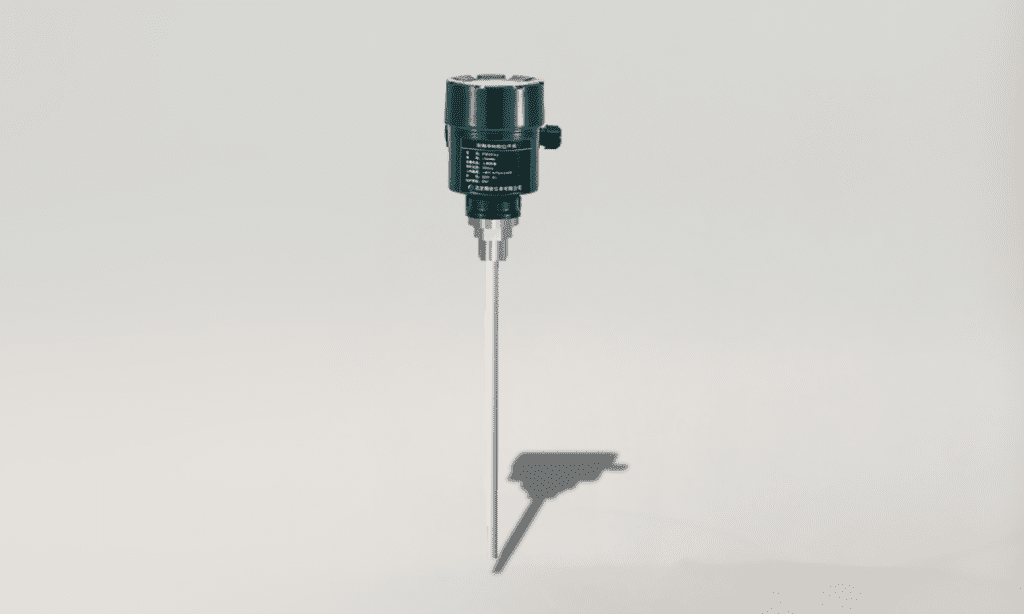

RF Admittance Level Switch
Corrosive liquid switch quantity Measurement
Application: Corrosive Liquid Measurement
Measure Range: 350mm
Rod: SS316L+PTLFE
Process Connection: 3/4″NPT Thread, SS316L
Contact Rating: 24V DC
Protection Class: Aluminum IP68
Output Signal: Two sets of normally open and normally closed contacts relay
Explosion Type: EXD IIC T6 Gb
Cable Entry: M20*1.5
Display: 0 ~ 99S (Adjustable)
Aluminum Housing IP68
