Temperature Transmitters
Supporting PT 50, PT 100, PT 500, PT 1000 K Type, M Type, E Type, J Type, T Type Thermocouples
MTC supplies a range of inline temperature sensor devices for the Philippines for various site scenarios in the industry. These RTD transmitters can be suppled as blind units or with an integral display or even configured to use with a remote type display to fit almost any type of connection in various pressure and temperature settings. If you already know the temperature range and the application, it should be quite simple to select a suitable temperature sensor for factory process monitoring or control.
Pt100 sensors are very common types of RTD sensors and so their availability and delivery. Check with us on lead times for delivery in the Philippines for RTD sensors. These can be quick shipped for new installations or to replace non-working sensors, especially the hard to find products that have been supplied through OEM’s.
General Data
Input Signal : Resistance Temperature Detector (RTD), Thermocouple (TC)
Output Accuracy : 0.1 °C (RTDO), 0.5 °C (EJK N T)
Output Signal : 4-20mA, or 4-20mA Plus HART Protocol
Power Supply Voltage : DC10-32V
Damping 0-32 Seconds Adjustable
Working Temperature Environment : -20°C+70°C
Outer Diameter :
- Diameter: 6mm, Probe Material is Same as Process Connection Material
- Diameter: 8mm, Probe Material is Same as Process Connection Material
Temperature Measuring Sensors & Instrumentation
MTC supplies are range of traditionally used temperature sensors which can be used to measure the temperature in either a static or a moving process in all types of industries found in the Philippines which require temperature sensing, temperature monitoring and transmission of the measurement through popular methods and more modern ones
Various names can be applied to traditional temperature measuring sensors ( and even equipment) depending on how they measure the temperature or in other words their characteristics.

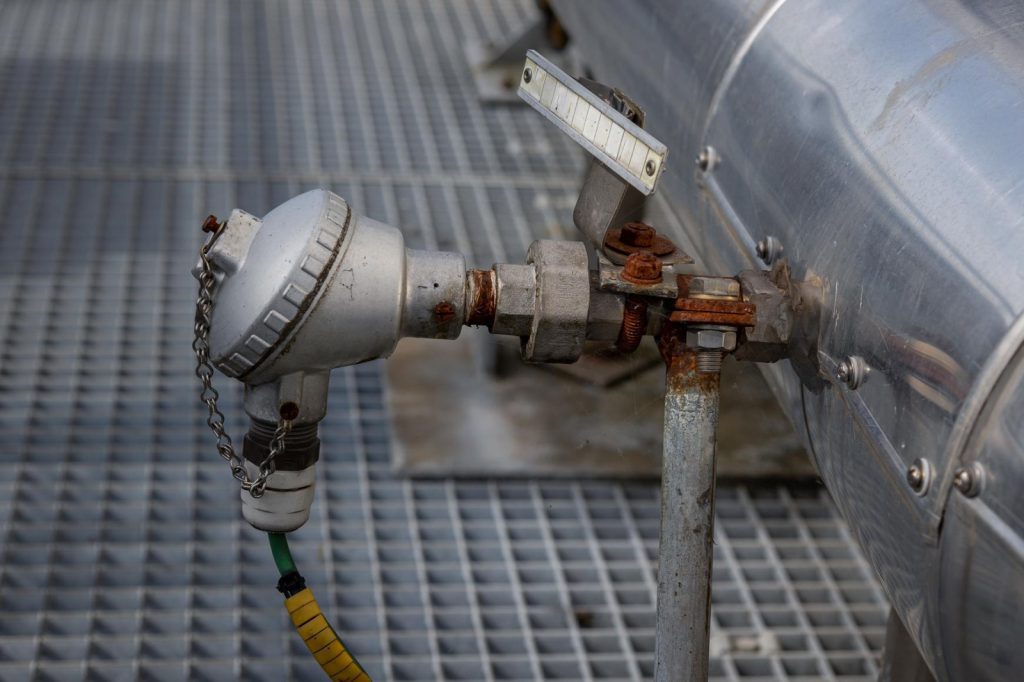

THERMOCOUPLES
These are used to measure the temperature by giving out a linearized microvolt signal which can also become a transmitter where the temperature is displayed for monitoring or control purposes or both. Thermocouple types are selected according to their temperature range and compatibility with the application.
RTD (resistance temperature detector)
RTD compatible instruments convert sensor resistance measurement into a temperature, also using industry-standard conversion tables/equations.
